FixLogix Metric Plate Fixture Kit - Small CMM

The FixLogix metric component kit for smaller CMMs and parts is simple, highly functional, and economical. Multi-axis infinite adjustment allows you to put locators and clamps where you need them.

A wide variety of components such as vertical towers and swivel-heads are provided to improve setup flexibility. This kit configuration is vastly superior to other systems that cost twice the price.

FixLogix components are compatible with our t-slot fixture plates, and with other M6 threaded grid plate systems. Our components are predominantly stainless steel and anodized aluminum for corrosion resistance.

Specifications
Schematics
Accessories

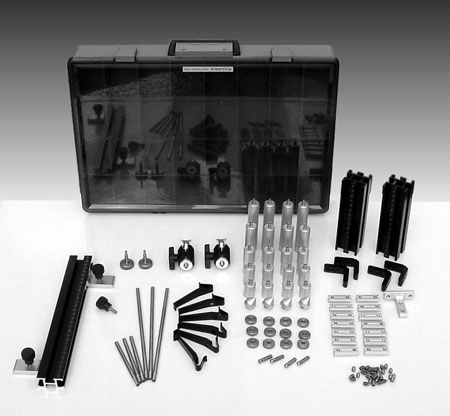

Standoffs:

(4) #MCS19-25: 25mm length x 19mm dia. standoff
(4) #MCS19-38: 37.5mm length x 19mm dia. standoff
(4) #MCS19-50: 50mm length x 19mm dia. standoff
(4) #MCS19-75: 75mm length x 19mm dia. standoff
(4) #MCS19-100: 100mm length x 19mm dia. standoff

Fasteners:

(12) #MCLN: locknut with M6 threaded ID
(For use with clamp rods, thumbscrew, and spherical locator pin)
(30) #MCTS8: M6 set screw SS, with nylon tips
(Used in T-nuts and right angle 2-way T-nuts)
(12) #MCTN1: T-nuts, 37.5mm long with (2) M6 threaded holes
(Used in T-slots of fixture plate or vertical riser)
(3) #MCTS: stainless thumbscrew with knurled top
(For use with cross-slide)

Clamps and Rods:

(6) #CTSC01: “Soft-touch” self-wedging tail-spring clamp
(Patent pending self-wedging clamp works with clamp rods)
(3) #MCR6-100T: Stainless clamp rod, 100mm long with M6 threaded end
(3) #MCR6-200T: Stainless clamp rod, 200mm long with M6 threaded end
(Use with locknut to attach rods to plate or standoffs)

Locating Accessories:

(2) #MCJSM6: Mini jack-screw with M6 thread
(Jackscrew and locknut are attached to standoff to create a mini jackstand.)
(4) #MCCL19: small conical locators, 19mm dia. with M6 stud
(For locating in holes 2.5mm- 17.5mm, and for creating Vee configurations)
(2) #MCSW: Swivel head assembly for horizontal or angular clamping setups, M6 post
(For multi-angle clamping or basing points)
(1) #MCCSA-300, Cross-slide assembly, 300mm, laser engraved, with mounting clamps
(Allows infinite adjustments, and angles to t-slots. Engraved scale for repeat setups)
(4) #MCAR: Adjustable rest button, stainless, spherical top, M6 thread
(Used with standoff, creates a 2-way locator or mini jackstand w/ spherical tip)

Risers and Accessories:

(2) #MCLR150: 150mm vertical linear riser, laser engraved, w/ six
t-slots: 2 x 2 + 1 x 1.
(Provides vertical setup functionality, laser engraved scales for easy repeat setups)
(4) #MCAC90-1 Right-angle connectors for risers, with (6) M6 threaded holes
(Provides mounting for risers….is a 2-way t-nut, also acts as tooling component)

Component Case:

(1) #CKCC: Component case with compartments, 475mm x 300mm x 75mm

Select quantity
Select tax exempt (if applicable)
Name	Part #	Price
Metric (Small CMM)*	CMCKS	~~$920.00~~
