Did you know....all M2 Styli prices are shown with the 10% discount!
Stylus pricing is obsolete. Please call for latest pricing or to order at (+1) 716-297-8644
M2 Ruby Ball Styli
Part Number	Diameter	Length	Stem Material	Weight	Price (USD)		Qty
A-5000-3603	2.0	20	SS	0.4	$22.50
A-5000-3604	3.0	10	SS	0.4	$19.80
A-5000-4154	4.0	10	SS	0.4	$19.80
A-5004-2182	4.0	12	TC	1.24	$38.70
A-5000-4155	5.0	10	SS	0.7	$32.40
A-5000-4156	6.0	10	SS	0.9	$35.10
A-5000-4158	8.0	11	SS	1.5	$64.80
A-5000-4160	3.0	20	SS	0.5	$22.50
A-5000-4161	4.0	20	SS	0.6	$22.50
A-5000-7800	0.3	10	TC	0.3	$99.90
A-5000-7801	0.7	10	TC	0.3	$75.60
A-5000-7802	1.5	10	SS	0.3	$19.80
A-5000-7803	2.5	10	SS	0.3	$19.80
A-5000-7804	2.5	20	SS	0.4	$22.50
A-5000-7805	0.5	10	TC	0.3	$81.00
A-5000-7806	1.0	10	SS	0.3	$28.80
A-5000-7807	2.0	10	SS	0.3	$19.80
A-5000-7808	1.0	20	TC	0.5	$44.10
A-5000-8663	1.0	27	TC	0.4	$75.60
A-5003-0033	1.0	20	TC	0.41	$49.50
A-5003-0034	1.5	20	TC	0.5	$49.50
A-5003-0035	1.5	30	TC	0.58	$34.20
A-5003-0036	2.0	30	TC	0.99	$39.60
A-5003-0037	2.0	40	TC	1.29	$44.10
A-5003-0038	2.5	30	TC	1.48	$39.60
A-5003-0039	2.5	40	TC	1.95	$44.10
A-5003-0040	3.0	30	TC	1.49	$39.60
A-5003-0041	3.0	40	TC	1.97	$44.10
A-5003-0042	3.0	50	TC	2.44	$39.60
A-5003-0043	4.0	30	TC	1.57	$39.60
A-5003-0044	4.0	40	TC	2.04	$44.10
A-5003-0045	4.0	50	TC	2.52	$44.10
A-5003-0046	5.0	20	TC	1.98	$39.60
A-5003-0047	5.0	30	TC	2.57	$44.10
A-5003-0048	5.0	40	TC	3.17	$47.70
A-5003-0049	5.0	50	TC	3.75	$47.70
A-5003-0064	3.0	50	Ceramic	0.83	$63.00
A-5003-0065	4.0	50	Ceramic	0.91	$63.00
A-5003-0066	5.0	50	Ceramic	1.31	$81.00
A-5003-0470	6.0	50	Ceramic	1.49	$77.40
A-5003-0577	0.7	20	TC	0.32	$96.30
A-5003-0938	3.0	20	TC	0.77	$70.20
A-5003-1029	4.0	22	TC	1.24	$70.20
A-5003-1325	1.0	10	TC	0.3	$69.30
A-5003-1345	0.5	20	TC	0.48	$94.50
A-5003-1370	4.0	30	Ceramic	0.68	$45.00
A-5003-3822	2.0	20	TC	0.48	$24.30
A-5003-4177	3.0	30	Ceramic	0.44	$75.60
A-5003-4241	4.0	30	CF	0.57	$90.00
A-5003-4779	5.0	30	Ceramic	0.93	$77.40
A-5003-4780	6.0	30	Ceramic	1.11	$82.80
A-5003-4781	5.0	30	CF	0.79	$93.60
A-5003-4782	6.0	30	CF	0.96	$98.10
A-5003-4784	4.0	75	CF	0.78	$121.50
A-5003-4785	5.0	75	CF	1.27	$129.60
A-5003-4786	6.0	75	CF	1.45	$136.80

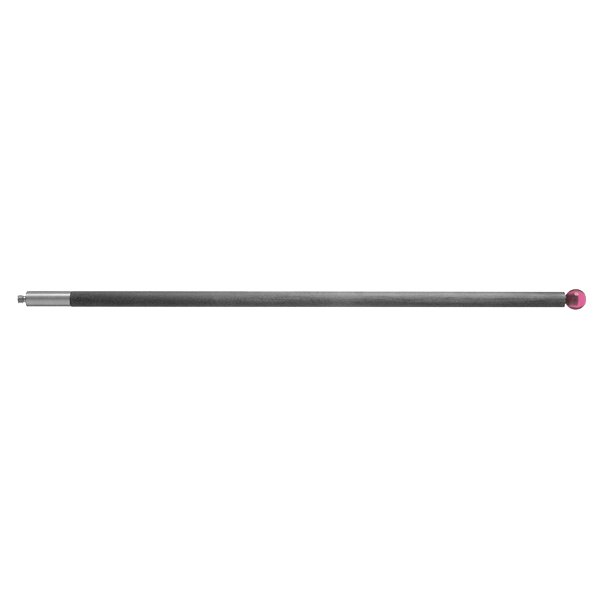

A-5003-2289	4.0	100	CF	1.50	$138.60

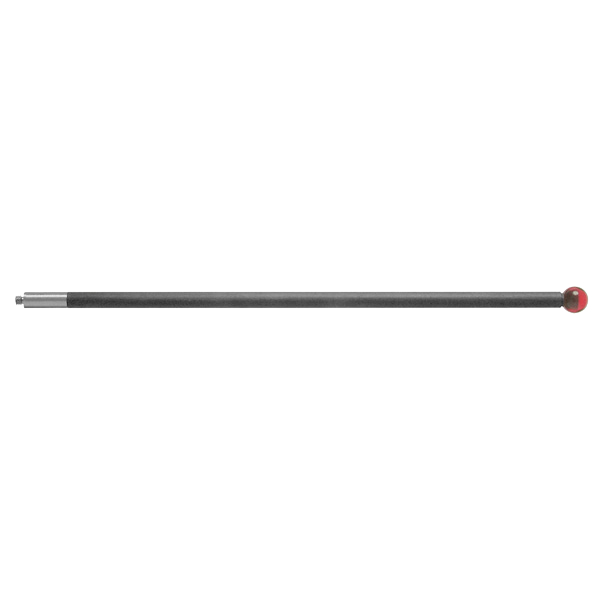

A-5003-2290	5.0	100	CF	1.59	$146.70

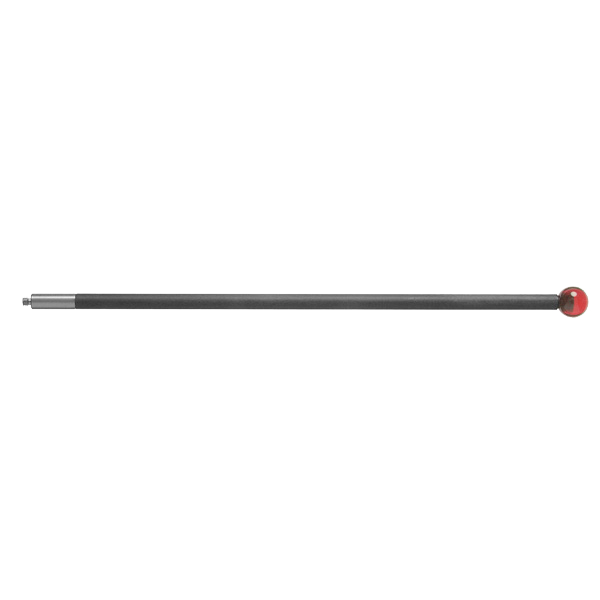

A-5003-2291	6.0	100	CF	1.78	$154.80
A-5003-2285	4.0	50	CF	1.0	$94.50
A-5003-2286	5.0	50	CF	1.1	$99.00
A-5003-2287	6.0	50	CF	1.2	$103.50

M2 Disc Styli
Part Number	Diameter	Length	Stem Material	Weight	Price (USD)		QTY

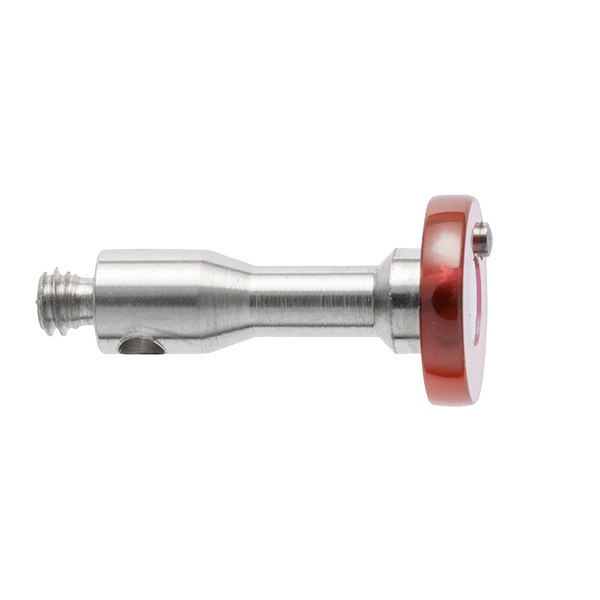

A-5000-3611	6.0	2.0	R	0.6	$63.00

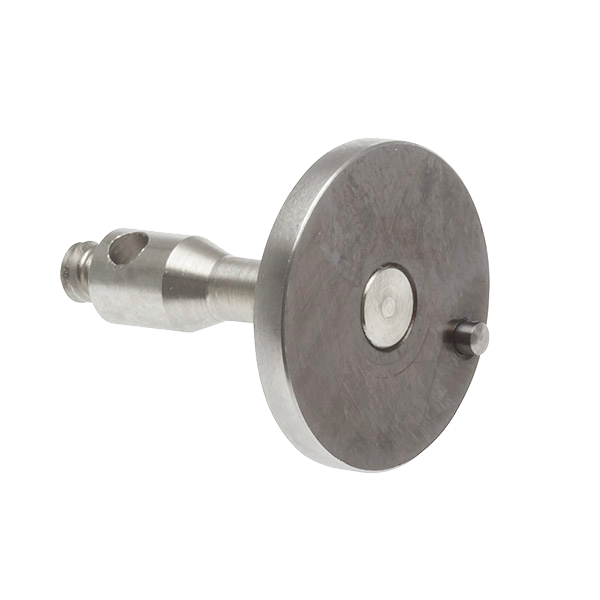

A-5004-1387	10	2.0	SS	1.0	$92.70

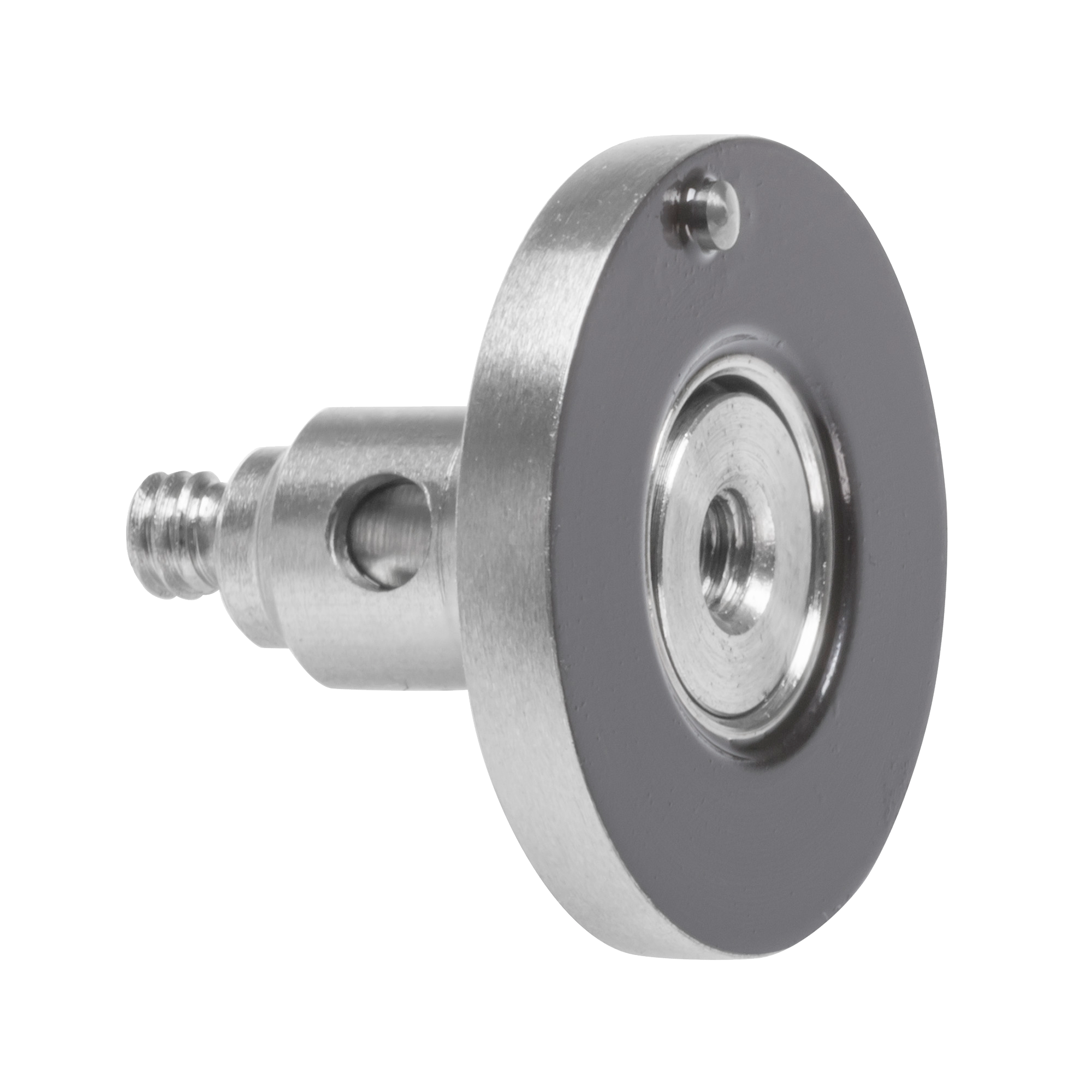

A-5004-1395	12	4.2	SS	2.0	$108.90

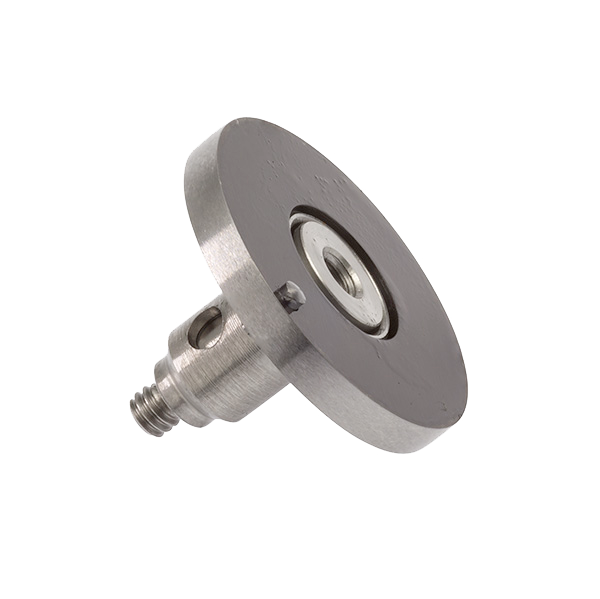

A-5004-1396	14	4.2	SS	2.5	$108.90
A-5000-7809	18.0	3.0	S1	3.0	$80.10

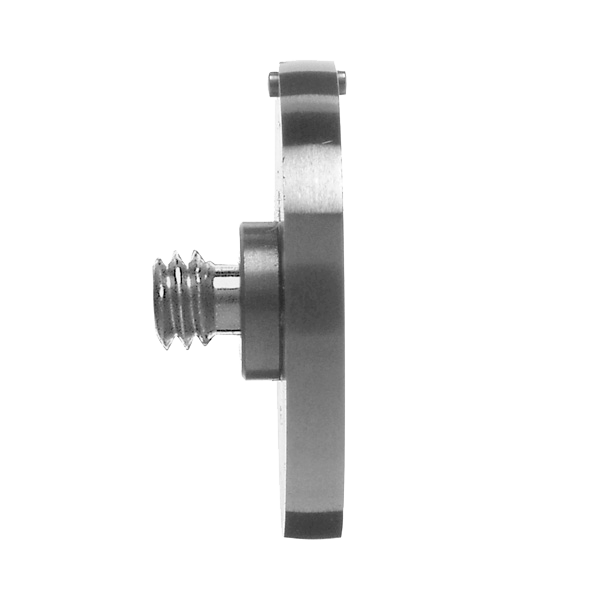

A-5000-3613	18	n/a	SS	2.7	$94.50

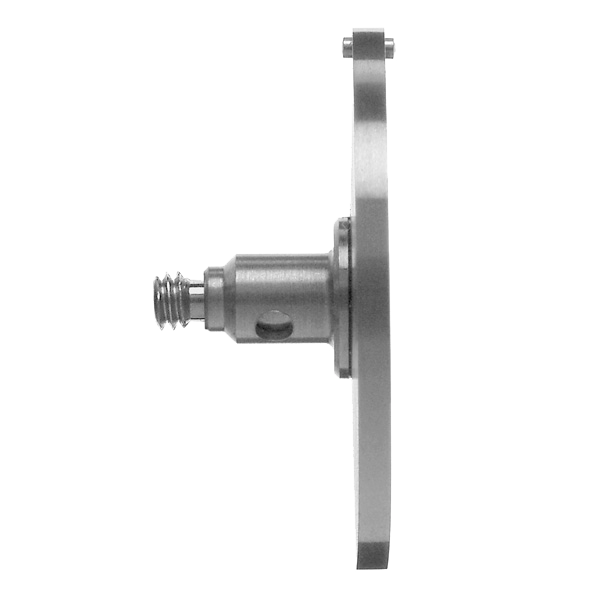

A-5000-7810	25	4.2	SS	4.0	$80.10
A-5000-4187	25	n/a	SS	3.8	$89.10

M2 Special Purpose Styli
Part Number	Diameter	Length	Stem Material	Weight	Price (USD)		QTY
A-5004-7588		15	SS	037	$22.50

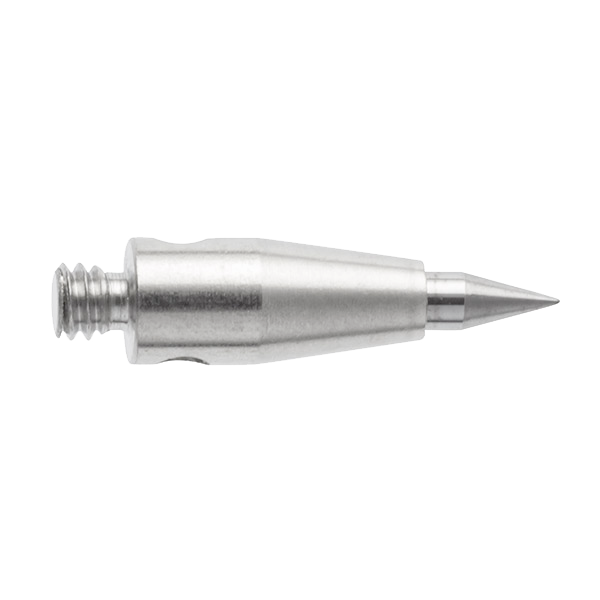

A-5000-7813		10	TC	0.7	$60.30
A-5000-3614	18.0	11	Ceramic	3.3	$251.10

M2 Cylinder Styli
Part Number	Diameter	Length	Stem Material	Weight	Price (USD)		QTY
A-5004-7589	1.5	1.5	SS	0.3	$23.40
A-5004-7590	3.0	13	SS	0.6	$23.40
A-5000-8876	1.0	15	SS	0.3	$166.50
A-5000-8877	1.5	15	R	0.3	$243.00
A-5000-7812	2.0	20	SS	0.5	$132.30
A-5003-0073	4.0	22	R	0.9	$117.00

M2 Star Styli Centers
Part Number	Diameter	Length	Stem Material	Weight	Price (USD)		QTY
A-5003-4789	1.0	3.5		0.31	$112.50
A-5003-4790	0.5	7.0		0.43	$146.70
A-5003-4791	1.0	11		0.45	$112.50
A-5000-3609	2.0	12		0.44	$63.90

M2 to M3 stainless steel adaptor, L 7 mm
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5004-7593	5	SS	0.6	$10.80

M3 to M2 stainless steel adaptor, L 5 mm
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5004-7592	5	SS	0.6	$12.60

M2 Knuckle Styli
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5000-7534		SS	1.6	$63.90

M2 Center Styli
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5000-3627		SS	0.8	$43.20
A-5003-4011	10	SS	0.7	$224.10

M2 Star Styli
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5000-7811	10	SS	0.5	$124.20
A-5003-4787	20		0.9	$237.60
A-5003-4788	20		0.9	$198.90
A-5000-7629	18		1.3	$125.10
A-5000-3626	30		1.8	$119.70

M2 Extensions
Part Number	Length	Stem Material	Weight	Price (USD)		QTY
A-5004-7610	5	SS	0.2	$10.80
A-5004-7585	10	SS	0.4	$11.70
A-5004-7586	20	SS	0.9	$13.50
A-5004-7591	30	SS	1.4	$15.30
A-5004-7611	40	SS	1.8	$17.10
A-5003-2280	40	CF	0.9	$87.30
A-5003-2281	50	CF	1.0	$90.90
A-5003-2282	70	CF	1.3	$94.50
A-5003-2283	90	CF	1.5	$99.00
A-5003-1208	10.2		0.3	$198.00
A-5003-1210	15.3		0.7	$171.00
A-5003-1218	35.5		0.7	$144.00
A-5003-1219	15.8		0.6	$76.50
A-5003-1228	16		0.8	$76.50
A-5003-0074	40		2.0	$78.30
A-5003-1258	22.5		2.0	$139.50
A-5003-0070	30		0.97	$52.20
A-5003-0071	40		1.22	$52.20
A-5003-0072	50		1.51	$54.00

The above styli and accessories cover 95-98% of all applications. There are obviously more and other styli available from this and other sources.

M2 Tools
Part Number	Description	Price (USD)		QTY
A-5003-2300	M2 Graphite Fibre Stylus Tool	$43.20
A-5004-7582	M2-M3 Stylus Tool	$8.10
A-1042-1486	C Spanner (TP20 Probe Body)	$18.00
A-1051-0040	Joint Key (Autojoint)	$15.30

Stylus Kits

High Performance Stylus Kit, A-5003-2310
Lightweight high stiffness carbon fibre M2 styli and extensions for high demand accuracy. (Recommended for TP200 Probe Systems).
Qu. Part Number Description 1 A-5003-2285 ø4 x 50 mm 1 A-5003-2286 ø5 x 50 mm 1 A-5003-2287 ø6 x 50 mm 1 A-5003-2280 40 mm Extension	Qu. Part Number Description 1 A-5003-2281 50 mm Extension 1 A-5003-2282 70 mm Extension 1 A-5003-2283 90 mm Extension 2 A-5004-7582 Stylus Tool 2 A-5003-2300 CF Stylus Tool
	Price Qty   $639.00

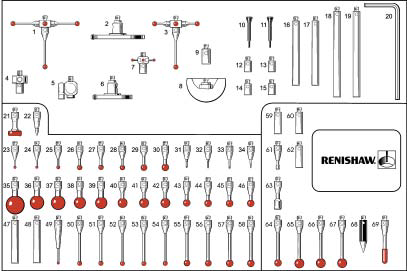

Comprehensive Stylus Kit, A-5000-0001
Pos. Part Number Description 1 A-5000-3626 M2 STR D2 5BALL 2 A-5000-7810 M2 DSC D25SLVS 3 A-5000-7629 M2 STR D2 5BALL 4 A-5000-3627 M2 ACC CENTRE 5WAY 5 A-5000-7534 M2 ACC KNUCKLE 6 A-5000-7809 M2 DSC D18SLVS 7 A-5000-7811 M2 STR D1 4BALL 8 A-5000-3614 M2 HEM D18CE 9 A-5004-7593 M2-M3 EXT L7SS 10-11 A-5004-7582 M2-M3 STYLUS TOOL 12-15 A-5004-7610 M2 EXT L5 D3SS 16-17 A-5004-7591 M2 EXT L30 D3SS 18-19 A-5004-7611 M2 EXT L40D3SS 20 P-TL01-0150 S3 HEX WRENCH 21 A-5000-3611 M2 DSC D6R T1.2 22 A-5000-7813 M2 PNT D1.4TC 23-24 A-5000-7806 M2 STY D1R L10 25 A-5000-7802 M2 STY D1.5R L10 26-28 A-5000-7807 M2 STY D2R L10 29 A-5000-7803 M2 STY D2.5R L10 30 A-5000-3604 M2 STY D3R L10	Pos. Part Number Description 31-32 A-5000-7805 M2 STY D0.5R L10 33 A-5000-7801 M2 STY D0.7R L10 34 A-5000-7800 M2 STY D0.3R L10 35 A-5000-4158 M2 STY D8R L11 36-37 A-5000-4156 M2 STY D6R L10 38-39 A-5000-4155 M2 STY D5R L10 40-42 A-5000-4154 M2 STY D4R L10 43-46 A-5000-3604 M2 STY D3R L10 47-48 A-5004-7586 M2 EXT L20 D3SS 49 A-5000-7808 M2 STY D1R L20 50-54 A-5000-3603 M2 STY D2R L20 55-56 A-5000-7804 M2 STY D2.5R L20 57-58 A-5000-4160 M2 STY D3R L20 59-60 A-5004-7585 M2 EXT L10 D3SS 61 A-5004-7589 M2 CYL D1.5SLVS 62 A-5004-7585 M2 EXT L10 D3SS 63 A-5004-7590 M2 CYL D3SLVS 64 A-5000-4160 M2 STY D3R L20 65-67 A-5000-4161 M2 STY D4R L20 68 A-5004-7588 M2 PNT D3SLVS 69 A-5000-7812 M2 SPH D2R
	Price Qty   $2,527.20

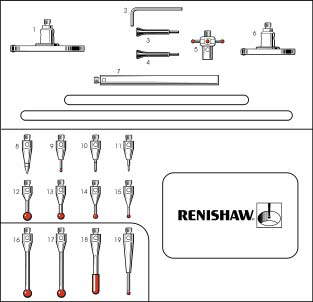

Enhancement Stylus Kit, A-5000-0002
Pos. Part Number Description 1 A-5000-7810 M2 DSC D25SLVS 2 P-TL01-0150 S3 HEX WRENCH 3-4 A-5004-7582 M2-M3 STYLUS TOOL 5 A-5000-7811 M2 STR D1 4BALL 6 A-5000-7809 M2 DSC D18SLVS 7 A-5004-7611 M2 EXT L40 D3SS 8 A-5000-7813 M2 PNT D1.4TC 9 A-5000-7801 M2 STY D0.7R L10 10 A-5000-7805 M2 STY D0.5R L10 11 A-5000-7800 M2 STY D0.3R L10 12 A-5000-7803 M2 STY D2.5R L10 13 A-5000-7807 M2 STY D2R L10 14 A-5000-7802 M2 STY D1.5R L10 15 A-5000-7806 M2 STY D1R L10 16-17 A-5000-7804 M2 STY D2.5R L20 18 A-5000-7812 M2 SPH D2R L20 19 A-5000-7808 M2 STY D1R L20
	Price Qty   $928.80

Stylus Kit 201, STK201
Pos. Part Number Description 1 A-500-7806 M2 STY D1R L10 2 A-5000-7807 M2 STY D2R L10 3 A-5000-3604 M2 STY D3R L10 4 A-5000-3603 M2 STY D2R L20 5 A-5000-4160 M2 STY D3R L20 6 A-5000-3611 M2 DSC D6R T1.2 L10 7 A-5000-3626 M2 STR D2 5BALL 8 A-5000-7809 M2 DSC D18SLVS T1.5 9 A-5004-7585 M2 EXT L10 D3SS 10 A-5000-7534 M2 ACC KNUCKLE OFFSET 11 A-5004-7582 M2-M3 STYLUS TOOL 12 P-TL01-0150 S3 HEX WRENCH 1.5 MM A/F 13 M-5000-3541 S8 TP2 SPANNER (not pictured) 14 A-1015-7658 TP2 & Styli Box (not pictured)
	Price Qty   $567.00

Stylus Kit 204, STK204
Pos. Part Number Description 1 A-5000-7806 M2 STY D1R L10 2 A-5000-7807 M2 STY D2R L10 3 A-5000-3604 M2 STY D3R L10 4 A-5000-4154 M2 STY D4R L10 5 A-5000-4155 M2 STY D5R L10 6 A-5000-4156 M2 STY D6R L10 7 A-5000-4158 M2 STY D8R L11 8 A-5000-3603 M2 STY D2R L20 9 A-5000-4160 M2 STY D3R L20 10 A-5000-4161 M2 STY D4R L20 11 A-5000-3611 M2 DSC D6R T1.2 L10 12 A-5004-7589 M2 CYL D1.5SLVS L11 13 A-5004-7590 M2 CYL D3SLVS L13 14 A-5004-7588 M2 PNT D3SLVS 15 A-5000-7809 M2 DSC D18SLVS T1.5 16 A-5000-7810 M2 DSC D25SLVS T1.5 17 A-5000-3614 M2 HEM D18CE 18 A-5000-7534 M2 ACC KNUCKLE OFFSET 19 A-5004-7592 M3-M2 EXT L5SS 20 A-5000-3627 M2 ACC CENTRE 5WAY 21 A-5004-7585 M2 EXT L10 D3SS 22 A-5004-7586 M2 EXT L20 D3SS 23 A-5004-7591 M2 EXT L30 D3SS 24 A-5004-7582 M2-M3 STYLUS TOOL 25 P-TL01-0150 S3 HEX WRENCH 1.5 MM A/F 26 M-5000-3541 S8 TP2 SPANNER (not pictured) 27 A-1015-7749 COMP BOX ASSEMBLY (not pictured)
	Price Qty   $1,161.00

Stylus Kit 206, STK206
Pos. Part Number Description 1 A-5000-7806 M2 STY D1R L10 2 A-5000-7807 M2 STY D2R L10 3 A-5000-3604 M2 STY D3R L10 4 A-5000-4154 M2 STY D4R L10 5 A-5000-4155 M2 STY D5R L10 6 A-5000-4156 M2 STY D6R L10 7 A-5000-4158 M2 STY D8R L11 8 A-5000-3603 M2 STY D2R L20 9 A-5000-4160 M2 STY D3R L20 10 A-5000-4161 M2 STY D4R L20 11 A-5000-3611 M2 DSC D6R T1.2 L10 12 A-5004-7589 M2 CYL D1.5SLVS L11 13 A-5004-7590 M2 CYL D3SLVS L13 14 A-5004-7588 M2 PNT D3SLVS 15 A-5000-7809 M2 DSC D18SLVS T1.5 16 A-5000-7810 M2 DSC D25SLVS T1.5 17 A-5000-3614 M2 HEM D18CE 18 A-5000-7534 M2 ACC KNUCKLE OFFSET 19 A-5004-7592 M3-M2 EXT L5SS 20 A-5000-3627 M2 ACC CENTRE 5WAY 21 A-5004-7585 M2 EXT L10 D3SS 22 A-5004-7586 M2 EXT L20 D3SS 23 A-5004-7591 M2 EXT L30 D3SS 24 A-5004-7582 M2-M3 STYLUS TOOL 25 P-TL01-0150 S3 HEX WRENCH 1.5 MM A/F 26 M-5000-3541 S8 TP2 SPANNER (not pictured) 27 A-1015-7749 COMP BOX ASSEMBLY (not pictured)
	Price Qty   $1,774.80
