TP1S/M Touch Probe

TP1s/M Touch Probe Probe Head TP1 Series Overview

The TP1S/TP1SM is a 1 inch diameter, shank mounted probe that is ideal for motorized or manual CMMs due to its robust design and large overtravel range. The probe signal is carried to the CMM via an external cable, and the probe has an adjustable stylus force to help optimise its performance. It has an M3 stylus mount and can carry a wide range of styli.

The TP1S system comprises the TP1S probe and a suitable interface; PI 4-2, PI 7-2, PI 200 or UCC.

The TP1SM is similar to TP1S, but with the cable connector rotated 90°..

Select quantity
Select tax exempt (if applicable)
Select adapter/shank (Included with purchase)
(Please see below for proper adapter/shank size)
Name Part # Price
TP1S A-1041-7540 $3316.00 Buy Now Button
TP1SM A-1041-7541 $3316.00 Buy Now Button
Specification summary TP1S(M)

Principal application

 Manual CMMs.
Sense direction 5-axis: ±X, ±Y, +Z
Unidirection repeatability maximum (2s µm) (at stylus tip) 0.50 µm (0.00002 in)
Pre-travel variation 360° (XY plane) ±2 µm (0.00008 in)
Weight *excluding shank and cable 128 g* (4.52 oz*)
Stylus range M3
Stylus force range (adjustable) 0.1 N - 0.5 N
Stylus force (set by Renishaw) 0.15 N
Stylus overtravel (typical) XY plane: ±19.5°
+Z axis: 8.5 mm (0.34 in) @ 0.1 N
5 mm (0.20 in) @ 0.5 N
Maximum extension on PH10 series N/A
Mounting method Shank to suit machine
Suitable interface PI 4-2, PI 7-2, PI 200, UCC

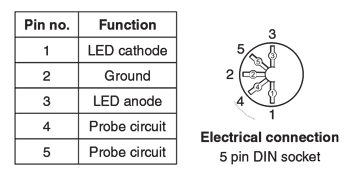

5-Pin DIN Socket

5-Pin DIN Socket

Motorized or Manual CMMs

TP-1S and TP-1M Probe Head

  • M2 Stylus and Kits
  • M3 Stylus
  • Probe Interface: PI 4-2
  • Probe Interface: PI 7-2
  • Probe Interface: PI 200
  • Probe Interface: UCC
  • Mounting Lug: Ø0.375

Adapter/CMM Compatibility

  • Probe Head comes with an adapter/shank for your CMM included with the Probe Head.
  • Select the appropriate adapter from the selection tool above.
  • MS1 = Brown & Sharpe, Bridgeport, Elm Systems, Fanamation, Giddings & Lewis, I.T.P., Poli, Portage Machine, Tesa, Zett-Mess.
  • MS2 = Boice, Carl Zeiss, Federal Products, Helmel, Kemco, Metrologic, MFO, Mora, Numerex, Real Meca, Starrett, Tokyo-Boeki, Tri-Measures, TSK, Wenzel.
  • MS3 = LK Tool (meter 4), Ferranti, Taurus, W & A, Eley & Warren
  • MS5 = Ferranti
  • MS6 = C.E. Johannson (old specification)
  • MS7 = Renault (Seiv), Tri Measures
  • MS8 = Olivetti
  • MS9 = MTI Corporation (UK)
  • MS10 = MTI Corporation
  • MS11 = Crown Windley
  • MS12 = MTI Corporation (new specification)
  • MS13 = DEA Corp
  • MS14 = CTA, Real Meca
  • MS15 = C.E. Johannson (new specification)
  • MS17 = Siefelmayer
