ProCounter III CMM Interface

ProCounter II CMM Interface

The ProCounter III CMM Interface is designed for use on manual CMMs equiped with Renishaw scales. Connects to the host CMM software system through a USB 2.0 link and plug compatible to the CMM, specifically the Helmel CheckMaster or Microstar series. Other CMM manufacturers may require an adapter for connection.

The ProCounter III provides support for Renishaw touch probe systems and does not require a probe interface.

Name Part # Price
ProCounter
III
PCIII Call to order
(+1) 716-297-8644

Application Manual CMM to Host Software Interface (Helmel CheckMaster or Microstar)
Power supply 100 V - 264 VAC, 50 Hz - 60Hz
Dimensions Height: 56 mm (2.2 in)
Width: 280 mm (11 in)
Depth: 183 mm (7.2 in)
Input
12 VDC, 2.1mm x 5.5mm center positive standard
USB
USB Type B Male
X,Y and Z Scales
15 Pin Female D-Sub
Touch Probe 9 Pin Female D-Sub
Compatibility Direct drivers for Geomet (requires separate driver installation-included)
Windows 7 and 8

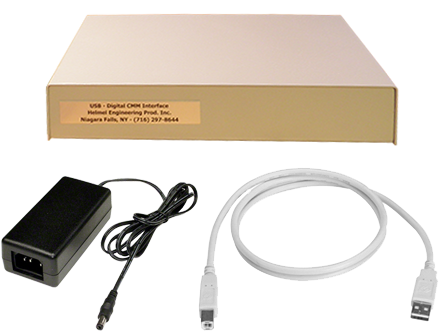

In the box ProCounter III CMM Interface
120 VAC to 12 VDC Power Adapter
6' USB Cable
Driver Installation CD for Windows 7 and 8

NOTE: The ProCounter III CMM Interface is plug compatible to Helmel CMMs. A cable adapter kit is required for use with other brands of CMMs.

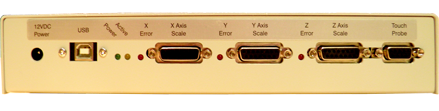

ProCounter III ProCounter III Connections
